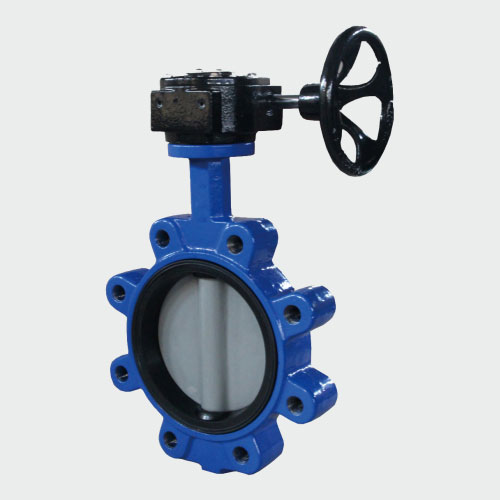

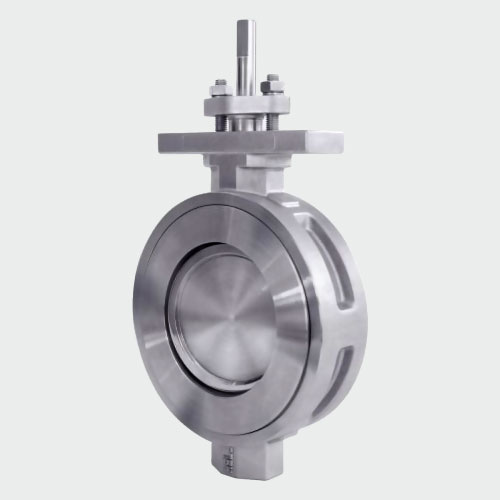

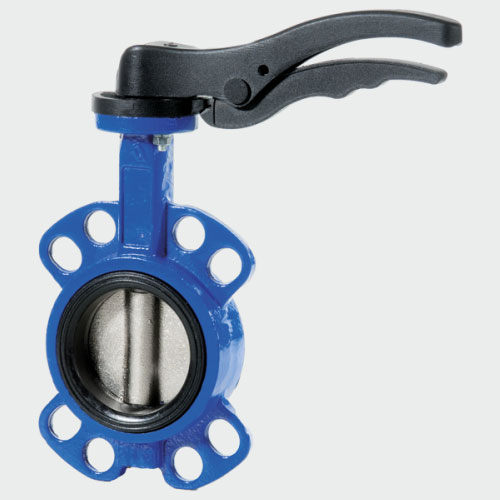

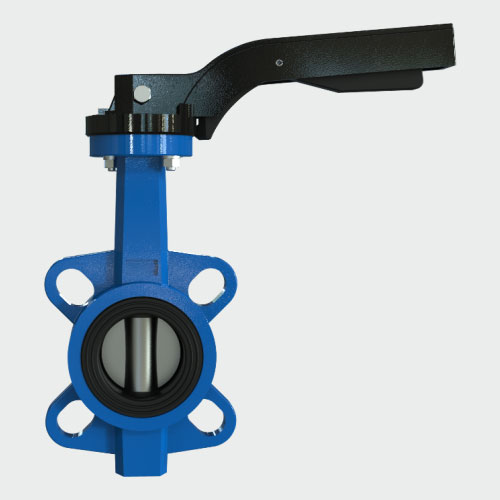

Butterfly valves are designed to regulate flow, but with limited control capability. Butterfly valves are easily operated by rotating a handle 90 degrees. It consists of a metal disc in the body of the valve which is positioned perpendicular to the flow in the closed position. Regulation of liquid flow can be allowed through intermediate rotations. Butterfly valves are configured to be operated by handles, gears or actuators according to specific needs.
| PART NAME | MATERIAL OPTION |
|---|---|
| Body | WCB / CF8 / CF8M |
| Disc | Cf8 / |
| Seat | PTFE / GFT / CFT |
| Retainer | M.S. / S.S. 304 / 316 |
| Shaft | S.S. 410 / S.S. 304 / 316 |
| Gland Packing | PTFE / GFT / CFT |
| Retainer Bolt | Stainless Steel |
| Disc Pin | S.S. 304 / 316 |
| Steam Plate | M.S. / S.S. 304 / 316 |
| Shaft Bush | M.S. / S.S. 304 / 316 |
| Bracket | S.S. |
| TESTING | CLASS | BODY | SEAT |
|---|---|---|---|
| Hydraulic | 150 # | 425 psig | 300 psig |
| Pneumatic | 150 # | - | 100 psig |
| Hydraulic | 300 # | 1100 psig | 800 psig |
| Pneumatic | 300 # | - | 100 |
